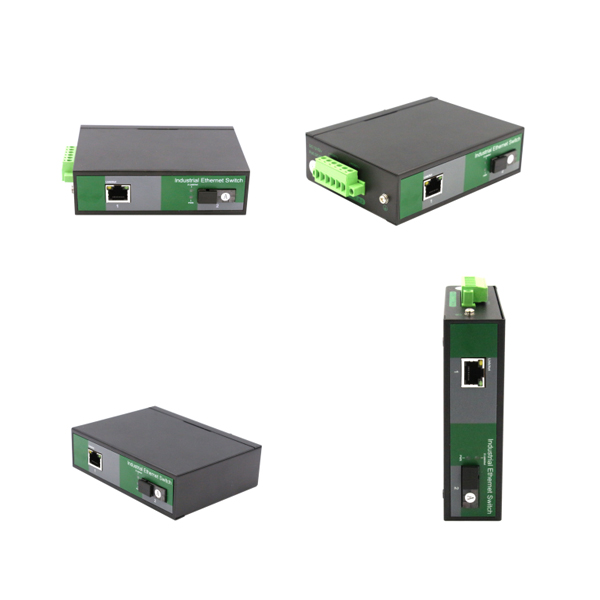

ast and stable Industrial media convertor 1 Port RJ45+1 Port optical 1000Mbps 19 (Single-Mode (Tx1310nm and Rx1550 for each) ,Single,SC 20km),Thailand WPX-11GB-SC20A
WPX-11GB
10/100/1000Base-TX to 1000Base-FX Industrial Media Converter
WPX- 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the WPX-11GB-SC2, up to 20km with the WPX-11GB-SC20 .
Product Introduction
WPX-11GB
10/100/1000Base-TX to 1000Base-FX Industrial Media Converter
WPX- 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the WPX-11GB-SC2, up to 20km with the WPX-11GB-SC20 .
The WPX-11GB series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 75℃ allows the WPX-11GB series to be placed in almost any difficult environment.
WPX-11GB 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000Base-TX and 1000Base-FX network. The WPX-11GB series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The WPX-11GB series is packaged in a compact IP30 case with DIN rail . It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Specifications:
Model No. | WPX-11GB-SC2/WPX-11GB-SC20/WPX-11GB-SFP |
10/100/1000Base-TX Port | 1 portRJ-45 auto-MDI / MDI-X |
1000Base-FX Port | WPX- 11GB-SC2: 1 SC interface |
Fiber Port Type | WPX- 11GB-SC2: SC / multi-mode,up to distance 2km ; |
Optical Frequency | WPX- L11GB-SC2: 1310nm |
Performance Specification | Bandwidth:14Gbps |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | Steel alloy |
LED Indicator | Power:Red |
Power Input | 12 to52V DC redundant power |
Power Consumption | < 3 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 118 x 86 x 33.5 mm |
Weight | Product Weight: 0.36KG |
Working Environment | Working temperature: -40～75℃; |
Warranty | 1-year replacement with new item; 3-years for main parts. |
