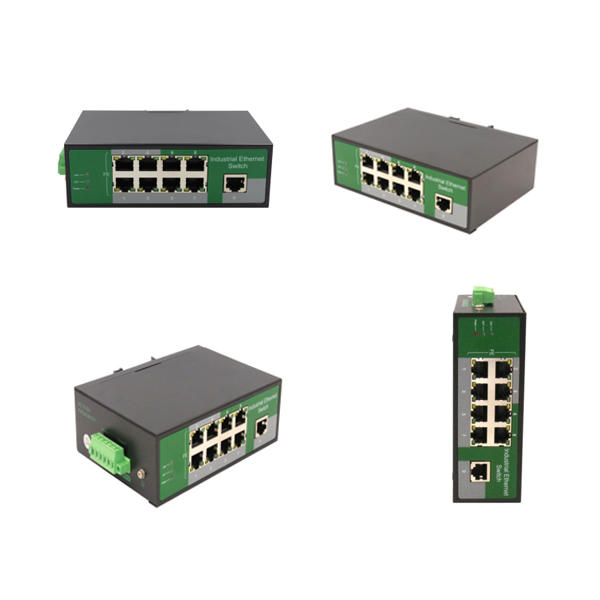

Cost effective 9 Port Industrial switch 100Mbps ,8 port PoE output, metal case, suites for rough environment at -40 ~75 ℃, a best choice for OEM wholesaler, distribu

10/100BASE-TXPort

8 port RJ-45 auto-MDI / MDI-X
1-port 10/100Base-TX RJ45 uplink

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports: port 1-8

Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

Performance Specification

Bandwidth:1.8Gbps
Packet Buffer Memory:1.25Mbit
Packet Forwarding Rate:1.4Mpps
MAC Address Table: 4K

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

Steel alloy

LED Indicator

Power:Red
Ethernet: Yellow
POE: Green

Power Input

48 to 57V DC

Surge protection

±4KV

Network Protocols

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

143.7 x 103 x 47.7 mm

Weight

Product Weight: 0.52KG
PackingWeight: 0.62KG

Working Environment

Working temperature: -40～75℃;
Storage temperature: -40～75℃
Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
