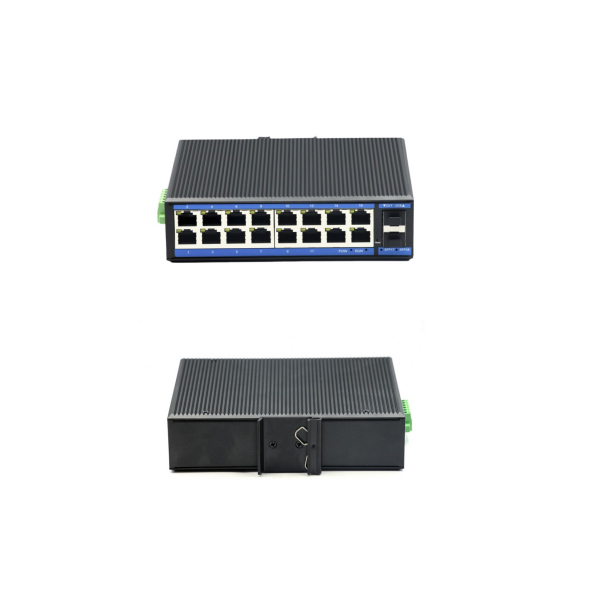

16 Port SFP Managed Industrial Switch

WPXGS-M-SFP is a robust 18-port industrial Ethernet switch that can provide unobstructed high-speed performance in harsh industrial environments. It is also equipped with 16 ports of 10/100/1000BASE-TX RJ45 + 2 gigabit SFP interfaces, encapsulated in a rugged and durable housing with IP40 protection level, and comes with a redundant power supply system. Its slim and lightweight housing is suitable for applications such as monitoring system deployment, control management, and providing wireless services in environments with harsh climatic conditions and a wide temperature range (from -40℃ to 75℃).

WPXGS-M-SFP is capable of supporting various 10/100/1000Mbps Ethernet media on the RJ-45 interface and has highly stable optical fiber performance.

WPXGS-M-SFP is encapsulated in a compact IP40 housing and is equipped with a DIN rail mounting interface. It offers dual redundant, reversible polarity 12V DC to 52V DC power input, suitable for high availability applications that require dual or backup power input.

Specification:

Model Number

WPXGS-M-SFP

Main chip model

Realtek 8382M

1000Base-TX port

16 ports of RJ-45 auto MDI/MDI-X interface

1000Base-FX port

2 gigabit SFP slots

Control port

RJ45 (115200.n.8.1), RS-232

Performance Specification Document

Bandwidth: 56 Gbps

Packet buffer storage: 12 Mbit

Packet forwarding rate: 41.7 Mpps

MAC address table: 8K Installation

DIN rail

Maximum frame size

10240 bytes of data packet size Flow control

In half-duplex mode, the backpressure mechanism is used; in full-duplex mode, the IEEE 802.3x pause frame mechanism is adopted. Attachment

IP40 aluminum housing

LED indicator light

Color: Red

Operating status: Green

Fiber: Green

Ethernet: Green

Power input

12 to 52 volts redundant DC power supply

Power consumption

15000

Network Protocol

IEEE 802.3 10BASE-T;

IEEE 802.3i standard 10Base-T communication protocol;

IEEE 802.3u; 100Base-TX/FX;

IEEE 802.3ab under the standard 1000Base-T;

IEEE 802.3z 1000Base-X;

IEEE 802.3x;

Network Cable

10BASE-T: Cat3, Cat4, Cat5 twisted-pair cable (unshielded, length ≤ 100 meters)

100BASE-TX: Cat5 or higher specification twisted-pair cable (length ≤ 100 meters)

1000BASE-TX: Cat6 or higher specification twisted-pair cable (length ≤ 100 meters)

Industry standard

FCC CFR47 Part 15, EN55032, Class A standard

IEC 61000-4-2 (Electrostatic Discharge Protection): Contact type ±6 kilovolts, Air environment ±8 kilovolts

IEC 61000-4-3 (RS): 10V/m (80 - 1000 MHz)

IEC 61000-4-4 (Electrical Fast Transient Pulse Group Immunity): Power port: ±2 kilovolts; Data port: ±1 kilovolt

IEC 61000-4-5 (Surge): Power interface ±2 kilovolts/cm ±1 kilovolt/meter;

Data interface: ±4 kilovolts/cm ±2 kilovolts/meter

IEC 61000-4-6 (CS): 3 volts (10 kHz - 150 kHz); 10 volts (150 kHz - 80 MHz)

IEC 61000-4-16 (Common Mode Conduction): 30 volts (continuous state), 300 volts (1 second)

Mean Time Between Failures

300,000 hours

Dimensions (width x length x height)

168 x 120 x 45.5 millimeters Weight

Product weight: 0.9 kilograms

Packaging weight: 1.2 kilograms

Operating environment

Operating temperature: -40 to 75 degrees Celsius;

Storage temperature: -40 to 80 degrees Celsius

Relative humidity: 5% to 95% (no condensation)

Software:

Port facilities

IEEE 802.3x flow control

Interface counter

Storm control

Link aggregation

Static aggregation

Dynamic aggregation, link aggregation protocol

Supports up to 8 aggregation groups, with each group having up to 8 ports

Supports routing policies based on source MAC address, destination MAC address, source and destination MAC address, source IP address, destination IP address, and source and destination IP address

MAC table management Support

Forwarding mode

Supports IVL forwarding mode

Static MAC address Support

MAC address binding Support

MAC address filtering Support

Mirror

Port-based mirroring

Spanning Tree

IEEE 802.1d Bridge Protocol

IEEE 802.1w Fast Spanning Tree Protocol

IEEE 802.1s MSTP

ERPS (G.8032)

Single Ring, Sub-ring, Multi-ring Load balancing

Recovery time < 50 milliseconds

LLDP (Link Layer Discovery Protocol) LLDP-MED

Loop protection

Supported; supported by

VLAN (Virtual Local Area Network)

4094 virtual local area networks

Port-based VLAN

GVRP (Global Virtual Reality Platform)

MAC-based VLAN

VLAN based on IP subnet

Voice VLAN

Bandwidth control Support

Port isolation

Support

IGMP (Internet Group Management Protocol)

IGMP V1 Network Monitoring Function

IGMP V2 Management Frame

IGMP V3 Listener Function

Source Port Check

IGMP Fast Leave

MLD Watch Function

MLD V1 Watch Function

MLD V2 Watch Function

Source Port Check

MLD Fast Departure Safety

ACL

ACL (IP Standard Access Control List), IPv4/IPv6

MAC Extended Access Control List

IP Extended Access Control List

Match of L2, L3, L4 fields

Logging, redirection, mirroring, speed limiting

Quality of Service (QoS)

Quality of Service Categories, Remarks

SP, WRR Queue Scheduling

Rate limiting based on ingress port

Inbound rate limiting based on priority

Rate limiting based on egress port

Rate limiting based on egress queue

Service Quality based on policy

Storm Control

Each port has 8 queues.

Dot1x (Ethernet 802.1x protocol)

Port access control

AAA

Support 802.1x

Support the RADIUS protocol

Support for implementing authentication, authorization and accounting functions through the RADIUS server. Management

User Management

Password protection

SNMP (Simple Network Management Protocol)

SNMP V1/V2c/V3

RMON (Remote Management Unit)

Statistics team

History team

Alert group

Event group Network management

HTTP 1.1, HTTPS

Firmware upgrade

Version upgrade IPv4/IPv6

Support

Command Line Interface

Support

System log / Debug information Support

diagnosis

ping (IPv4), ping (IPv6)

Tracing route (IPv4)

Tracing route (IPv6)

NTP (Network Time Protocol)

NTP Client

DHCP (Dynamic Host Configuration Protocol)

DHCPv4 Client, DHCPv6 Client

Dynamic Host Configuration Protocol listening function

DHCP anti-spoofing entry

Trust Territory

Telnet (Remote Login Protocol)

Telnet Server

TFTP (Simple File Transfer Protocol)

TFTP Client

SSH

SSH server
