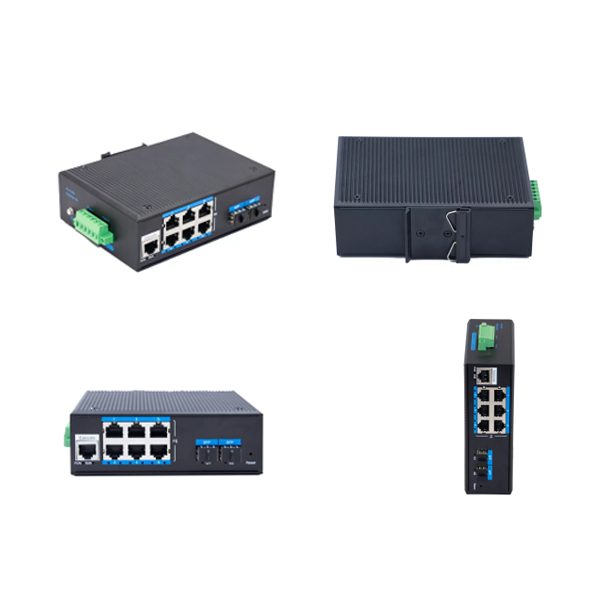

6 ports 10100Base-Tx RJ45 + 2G SFP managed industrial switch, L2 Ethernet switch, IP40 protection grade panel-mounted chassis switch, model WPX-GFS-M-SFP

WPX-GFS-M-SFP

6 ports 10/100BASE-TX + 2G SFP managed industrial switch

WPX-GFS-M-SFP is a rugged 8-port industrial Ethernet switch that can provide unblocked high-speed transmission performance in harsh industrial environments. It is also equipped with 6 ports of 10/100BASE-TX RJ45 + 2G SFP interfaces, encapsulated in a sturdy and durable housing with IP40 protection level, and comes with a redundant power supply system. Its slim and lightweight housing is suitable for applications such as monitoring system deployment, control management, and providing wireless services in environments with harsh climatic conditions and a wide temperature range (from -40°C to 80°C).

ZX26GFS-M-SFP can support various 10/1000Mbps Ethernet media and achieve stable and efficient fiber optic transmission performance through RJ-45 interfaces.

WPX-GFS-M-SFP is packaged in a compact IP40 housing and can be installed via DIN interfaces. It provides power supply covering a wide voltage range, suitable for global operation. Additionally, it offers dual redundant, reversible polarity 12V DC to 52V DC power input, suitable for high availability applications requiring dual or backup power input.

100Base-TX ports

6 ports of RJ-45 auto MDI/MDI-X interfaces

1000Base-FX ports

2G SFP slots

Performance specification manual

Bandwidth: 12.8Gbps

Packet buffer memory: 12Mbit

Packet forwarding rate: 9.5Mpps

MAC address table: 4K Installation

DIN guide rail

Maximum frame size

10240-byte data packet size Flow control

In half-duplex mode, the backpressure mechanism is used; in full-duplex mode, the IEEE 802.3x pause frame mechanism is adopted. Attachment

IP40 aluminum housing

LED indicator light

Color: Red

Fiber optic: Line 2 (Green)

Ethernet: Yellow Power input

12 to 52 volts DC redundant power supply

Surge protection

± 4 kilovolts Protection

ESD (Ethernet): 6 kilovolts direct current

Peak (voltage): 6 kilovolts direct current Network Protocol

IEEE 802.3 10th baseband - T-type standard;

IEEE 802.3i standard's 10Base-T communication protocol;

IEEE 802.3u; 100Base-TX/FX;

IEEE 802.3x;

Network cable

10BASE-T: Cat3, Cat4, Cat5, Super 5-category unshielded twisted pair (length ≤ 100 meters)

100BASE-TX: Cat5 or higher specification unshielded twisted pair (length ≤ 100 meters) Industry standard

FCC CFR47 Part 15, EN55032 Class A

IEC 61000-4-2 (Electrostatic Discharge Protection): Contact type ±8 kilovolts, Air environment ±12 kilovolts

IEC 61000-4-3 (RS): 10V/m (80 - 1000 MHz)

IEC 61000-4-4 (Electrical Fast Transient Pulse Group Immunity): Power port: ±4 kilovolts; Data port: ±2 kilovolts

IEC 61000-4-5 (Surge): Power port: ±2 kilovolts/decimeter, ±4 kilovolts/cm; Data port: ±2 kilovolts

IEC 61000-4-6 (CS): 3 volts (10 kHz - 150 kHz); 10 volts (150 kHz - 80 MHz)

IEC 61000-4-16 (Common Mode Conduction): 30 volts (continuous state), 300 volts (1 second) Certification

CE certification, FCC certification, RoHS compliance certification

Mean Time Between Failures

300,000 hours

Dimensions (width x length x height)

143.7 × 104 × 47.7 millimeters Weight

Product weight: 0.6 kilograms

Packaging weight: 0.7 kilograms Work environment

Working temperature: -40 to 80 degrees Celsius;

Storage temperature: -40 to 80 degrees Celsius

Relative humidity: 5% to 95% (no condensation)

Warranty; guarantee; Guarantee

The entire unit can be replaced with brand-new components within one year; the main components can be used for three years.
