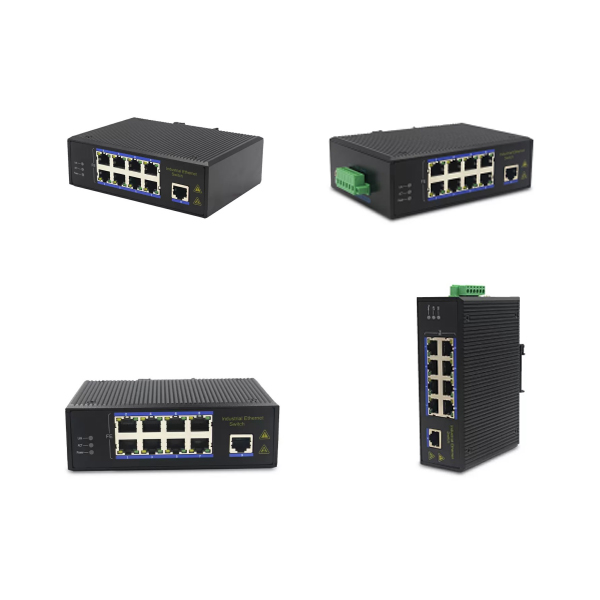

Industrial CCTV PoE switch 8 port 10100Mbps+1 port uplink
Simple design, more practical and convenient
WPX-09F is a strengthened 9-port industrial Ethernet switch that can provide unobstructed high-speed transmission performance in harsh industrial environments. It is equipped with 9 RJ45 copper interfaces of 10/100/100BASE-TX type, which are encapsulated in a sturdy and durable casing with IP40 protection level and are equipped with a redundant power supply system. Its compact casing is suitable for applications such as monitoring system deployment, control management, and providing wireless services in environments with harsh climatic conditions and a wide temperature range (from -40℃ to 85℃).
Product Introduction
Simple design, more practical and convenient
WPX-09F is a strengthened 9-port industrial Ethernet switch that can provide unobstructed high-speed transmission performance in harsh industrial environments. It is equipped with 9 RJ45 copper interfaces of 10/100/100BASE-TX type, which are encapsulated in a sturdy and durable casing with IP40 protection level and are equipped with a redundant power supply system. Its compact casing is suitable for applications such as monitoring system deployment, control management, and providing wireless services in environments with harsh climatic conditions and a wide temperature range (from -40℃ to 85℃).
The WPX-09F series products have strong compatibility and can support various 10/100Mbps Ethernet media and achieve highly stable optical fiber transmission performance through RJ-45 interfaces.
The WPX-09F series is packaged in a compact IP40 chassis, supporting DIN rail installation as well as panel installation, thus effectively utilizing cabinet space. It is equipped with an integrated power supply, with a wide voltage range, suitable for global operation. Additionally, it provides dual redundant, reversible polarity 12V DC to 52V DC power input, suitable for high availability applications requiring dual or backup power input.
8-port 10/100Base-TX type RJ45 interfaces with automatic negotiation and automatic MDI/MDI-X functions.
• 1 port, 10/100Base-TX standard RJ45 interface for uplink channel
Industrial consistency
• 12V to 52V DC, redundant power input
-40℃ to 85℃ operating temperature
• IP40 aluminum casing
• Supports 6kV DC Ethernet electrostatic discharge protection
• Supports 6kV DC transient overvoltage test protection function, suitable for power lines.
• Free fall, shock and vibration stability
• Embedded DIN rail and wall-mounted hardware design Specification:
Model No. | WPX-09F |
10/100BASE-TXPort | 8 portRJ45 auto-MDI / MDI-X 1port RJ45 uplink |
Performance Specification | Bandwidth: 1.8Gbps Packet Buffer Memory:1.25MbitPacket Forwarding Rate:1.4MppsMAC Address Table: 4K |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power:RedEthernet: Yellow POE: Green |
Power Input | 12 to 52V DC redundant power |
Power Consumption | 3 watts max |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 143.7 x 103 x 47.7 mm |
Weight | Product Weight: 0.52KGPacking Weight: 0.62KG |
Working Environment | Working temperature: -40～85℃; Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
