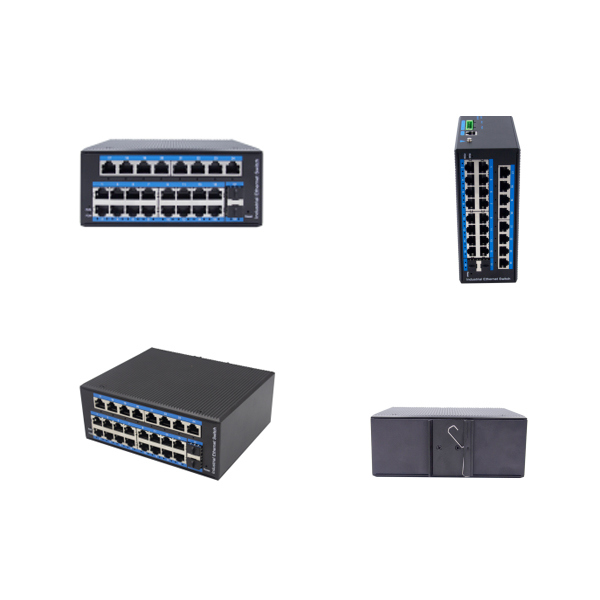

24-port 10100Base-Tx RJ45+2G SFP managed industrial switch, L2 ethernet switch IP40 hardened Din-rail switch WPX-GFS-M-SFP
WPX-GFS-M-SFP an hardened 26-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 24-port 10/100BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
Product Introduction
The WPX-GFS-M-SFP provides the flexibility to all kinds of 10/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The WPX-GFS-M-SFP is packaged in a compact IP40 case with DIN-rai installation. It provides power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs
Specifications:
Model No. | WPX-GFS-M-SFP |
100Base-TX Port | 24portRJ-45 auto-MDI / MDI-X |
1000Base-FX Port | 2GSFP Slot |
Performance Specification | Bandwidth: 12.8Gbps |
Installation | DIN rail |
Maximum Frame Size | 10240bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40aluminumhousing |
LED Indicator | Power:Red |
Power Input | 12 to 52V DC redundant power |
Surgeprotection | ± 4KV |
Protection | ESD (Ethernet): 6KV DC |
Network Protocols | IEEE802.3 10BASE-T; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55032 Class A |
Certification | CE FCC Rohs compliance |
MTBF | 300,000hours |
Dimensions (W x D x H) | 166×137×68.5mm |
Weight | Product Weight: 0.8KG |
Working Environment | Working temperature: -40～80℃; |
Warranty | 1-year replacement with new item; 3-years for main parts. |
