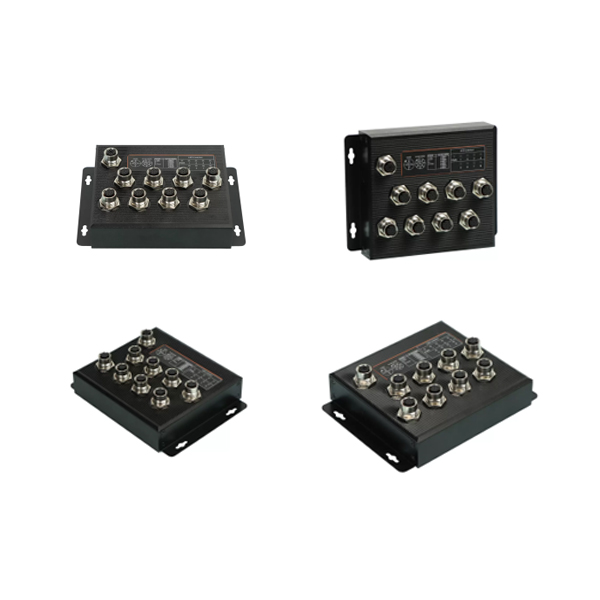

M12 rugged traffic 8 Port gigabit Industrial switch IP64 grade WPX-08G-M12
WPX-08G-M12
8-port Gigabit rugged Industrial Switch IP64
WPX-08G-M12 is a rugged Industrial switch with M12 connector, it is specially used in Vehicles, airlines, automation Industry etc. which requires to experience vibration and shocks. The switch meets CE, FCC, Rohs standard, IP64 protection, with working temperature from - 40 ° C to 80 ° C . it provides to user more safety, reliable solution on vehicles.
Product Introduction
WPX-08G-M12 is a rugged Industrial switch with M12 connector, it is specially used in Vehicles, airlines, automation Industry etc. which requires to experience vibration and shocks. The switch meets CE, FCC, Rohs standard, IP64 protection, with working temperature from - 40 ° C to 80 ° C . it provides to user more safety, reliable solution on vehicles.
Features
● M12 interface, gigabit port is M12 X-coded type
● Wall-mounted installation
● Support full duplex or half duplex mode, and with automatic negotiation capability
● The network port supports automatic cross recognitio
Specifications:
Model No. | WPX-08G-M12 |
Description | 8-port Gigabit rugged Industrial Switch |
Performance Specification | Bandwidth: 20GbpsPacket Buffer Memory:2MbitPacket Forwarding Rate:15MppsMAC Address Table: 8K |
Installation | Wall mounted |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP64aluminum housing |
LED Indicator | Power:RedEthernet: Yellow |
Power Input | 12 to 52V DC redundant power |
Power Consumption | 5 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 157.8 x 121 x 43.2 mm |
Weight | Product Weight: 0.65KGPacking Weight: 0.75KG |
Working Environment | Working temperature: -40～85℃; Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
