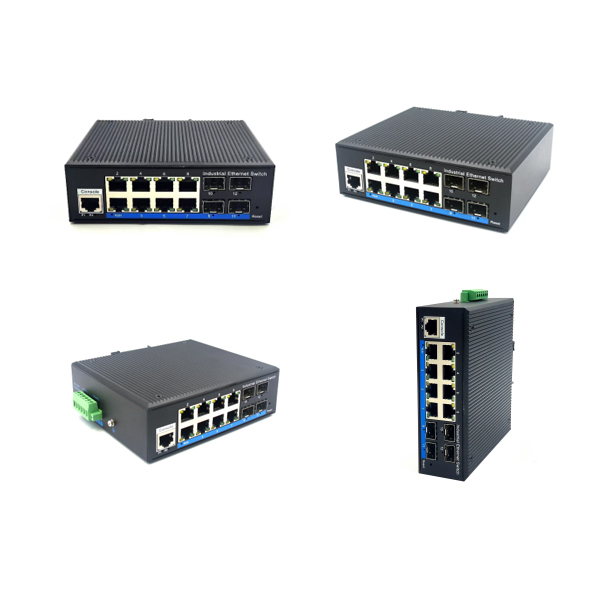

8 Port gigabit PoE+4G SFP uplink L2 managed Industrial grade PoE switch IP40 rugged aluminun case - project best choice 8 port POE WPX-GSP-M-SFP

10/100/1000Base-TX Port

8-PortRJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-8 port support PoE

Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

4GSFP Slot

Performance Specification

Bandwidth: 56Gbps
Packet Buffer Memory:12Mbit
Packet Forwarding Rate:41.6Mpps
MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

10240bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 slim type metal case

LED Indicator

Power:Red
Fiber: Link 2(Green)
Ethernet: Yellow

Power Input

48 to57V DC redundant power

Power Consumption

<10W

Protection

ESD (Ethernet): 6KV DC
Surge (Power): 6KV DC

Network Protocols

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohscompliance

MTBF

>300,000hours

Dimensions (W x D x H)

143×125×48mm

Weight

Product Weight: 1.25KG
Packing Weight: 1.4KG

Working Environment

Working temperature: -40～80℃;
Storage temperature: -40～80℃
Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
