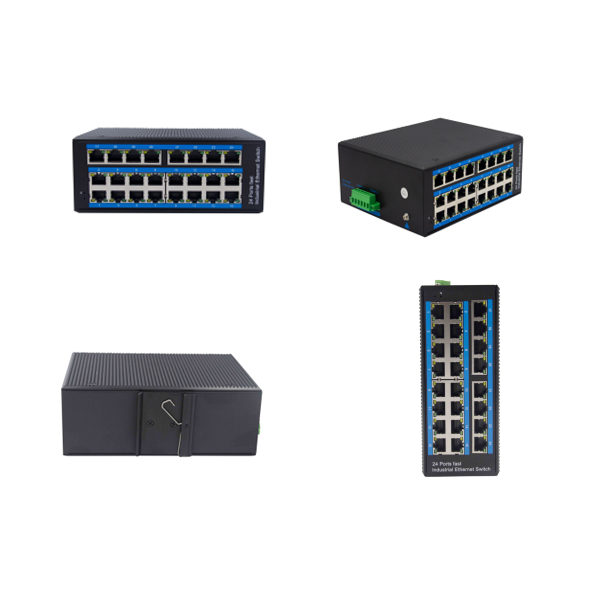

24-port rugged 10100-TX Industrial Switch applied work for outdoor CCTV POE WPX-024FP

24-port rugged 10100-TX Industrial Switch applied work for outdoor CCTV POE WPX-024FP

WPX-024F an hardened 24-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 24-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.


INQUIRY TEL：WhatsApp:86-13507311110
Product Introduction

WPX-024F an hardened 24-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 24-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

WPX-024F is packaged in a compact IP40 case that allows DIN rail to have efficient usage of cabinet space. It provides power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Specifications:

Model No.

WPX-024F

10/100/1000BASE-TXPort

24 portRJ-45 auto-MDI / MDI-X


Performance Specification

Bandwidth:4.8Gbps
Packet Buffer Memory:4Mbit
Packet Forwarding Rate: 3.6Mpps
MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

2000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing


LED Indicator

Power:Red
Ethernet: Yellow

Power Input

12 to 52V DC redundant power

Power Consumption

<10 watts

Surge protection

±4KV


Network Protocols

IEEE802.3 10BASE-T
IEEE802.3i 10Base-T
IEEE802.3u;100Base-TX
IEEE802.3x

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100meter)


Industry Standard

EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS :
IEC(EN)61000-4-2(ESD) : ±8Kv contact discharge,±12kVair discharge
IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz)
IEC 61000-4-4 (EFT), Power cord ±4kVdata cable:±2kV
IEC 61000-4-5 (Surge), Ethernet port ±4kV CM//±2kV DM
IEC(EN)61000-4-6(RF conduction) : 3V(10kHz～150kHz),10V(150kHz～80MHz)
IEC(EN)61000-4-24(common conduction) : 30V cont. 300V,1s
IEC(EN )61000-4-8
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

MTBF

300,000hours

Certification

CE FCC Rohs compliance

Dimensions (W x D x H)

166×137×68.5mm

Weight

Product Weight: 1.4KGS
Packing Weight: 1.5KGS

Working Environment

Working temperature: -40～80℃;
Storage temperature: -40～80℃
Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
