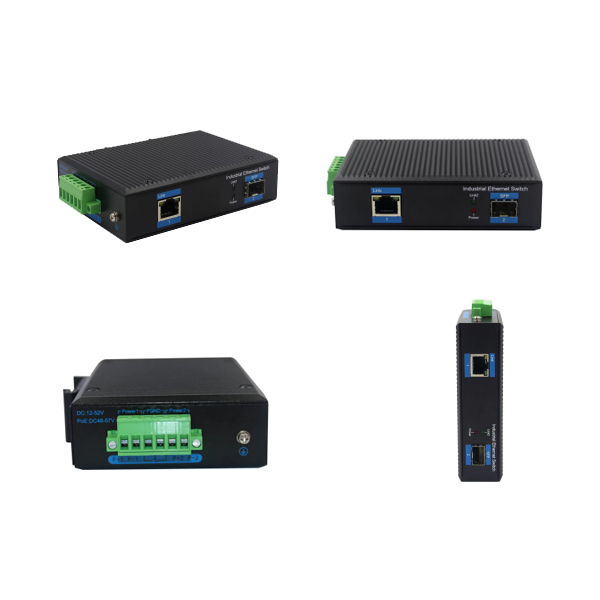

Industrial media convertor 1 port SFP optical + 1 port gigabit copper ethernet 30W PoE output dual DC48V input WPX-11GP-SFP WPX-11G-SFP WPX11G-SC20
Distance extending Slim Type with more Practicability and Convenience
10/100/1000Base-TX to 1000Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the WPX-11G-SC2, up to 20km with the
The WPX-11G series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 85℃ allows the WPX-11G series to be placed in almost any difficult environment.
Product Introduction
Distance extending Slim Type with more Practicability and Convenience
10/100/1000Base-TX to 1000Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the WPX-11G-SC2, up to 20km with the
The WPX-11G series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 85℃ allows the WPX-11G series to be placed in almost any difficult environment.
WPX-11G 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000Base-TX and 1000Base-FX network. The series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The WPX-11G series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs
Interface
• 1-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
• 1-port 1000Base-Fx interface SC/FC/ST/SFP
• Multi-Mode up to 2km
• Single-Mode up to 20km/40km/60km/80km
Industrial conformance
• 12V to 52V DC, redundant power input
• -40℃ to 85℃ operating temperature
• IP40 aluminum housing
• Supports 6KV DC Ethernet ESD protection
• Supports 6KV DC EFT protection for power line
• Free Fall, Shock and Vibration Stability
• DIN-rail and wall-mountable hardware design
Specifications:
Model No. | WPX-11G-SC2/ WPX-11G-SC20/WPX-11G-SFP |
10/100/1000Base-TX Port | 1 portRJ-45 auto-MDI / MDI-X |
1000Base-FX Port | WPX-11G-SC2: 1 SC interface |
Fiber Port Type | WPX-11G-SC2: SC / multi-mode,up to distance 2km ;WPX-11G-SC20:SC / single-mode,up to distance 20km ;WPX-11G-SFP:Vary on module |
Optical Frequency | WPX-11G-SC2: 1310nmWPX-11G-SC20: 1310nmWPX-11G-SFP:Vary on module |
Performance Specification | Bandwidth: 14GbpsPacket Buffer Memory:1.2MbitPacket Forwarding Rate:10.5MppsMAC Address Table: 2K |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power:RedFiber: Link 2(Green)Ethernet: Yellow |
Power Input | 12 to 52V DC redundant power |
Power Consumption | < 3 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 118 x 86 x 33.5 mm |
Weight | Product Weight: 0.36KGPacking Weight: 0.46KG |
Working Environment | Working temperature: -40～85℃; Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
