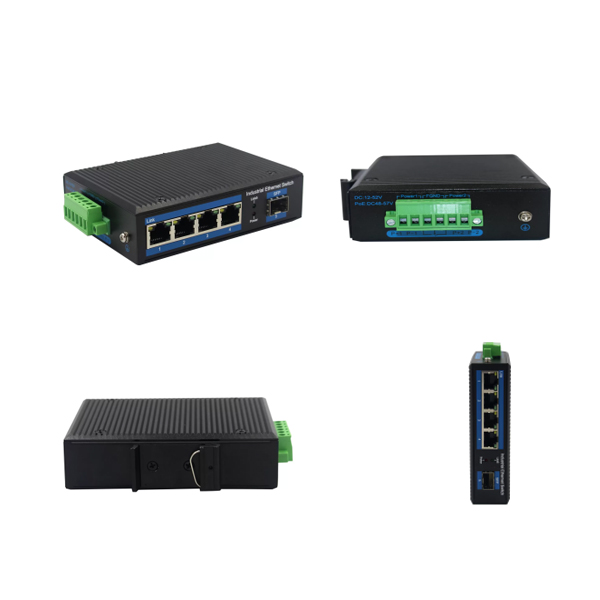

IP40 Industrial grade DC48V 4 port 100Mbps ethernet switch+1 port connector 1-8 Port PoE optional -40 ~80 ℃ WPX-14FP-SFP

Distance extending Slim Type with more Practicability and Convenience

WPX 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the WPX-14F-SC2, up to 20km with the WPX-14F-SC20 .

WPX-14F series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 85℃ allows theWPX-14F series to be placed in almost any difficult environment.

WPX-14F series 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The WPX-14F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ45 port and performs highly stable fiber performance.

WPX-14F series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Interface

• 4-port 10/100Base-Tx RJ45 with auto negotiation and auto-MDI/ MDI-X function

• 1-port 100Base-Fx interface SC/FC/ST/SFP

• Multi-Mode up to 2km

• Single-Mode up to 20km/40km/60km/80km

Industrial conformance

• 12V to 52V DC, redundant power input

• -40℃ to 85℃ operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

• DIN-rail and wall-mountable hardware design
