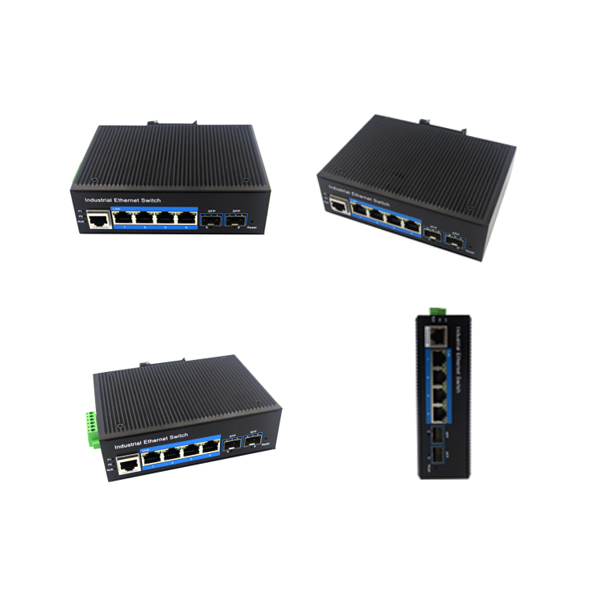

Din-rail design, Alliuminun L2 Managed Industrial Switch, 101001000Mbps 4-Port RJ45+2-Port gigabit SFP+4 port POE, DC48~57V -40℃-80℃ WPX-24GSP-M-SFP

10/100/1000Base-TX Port

4-PortRJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-4 port support PoE

Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)

PoE port Auto detectaf/atdevices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

2GSFP Slot

Performance Specification

Bandwidth (switch capacity): 38Gbps
Packet Buffer Memory:12Mbit
Packet Forwarding Rate:14.9Mpps
MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

10240bytes

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40aluminumhousing

LED Indicator

Power:Red
RUN: Green
Fiber: Green
Ethernet:Green
PoE:Yellow

Power Input

48 to57V DC redundant power

Power Consumption

<5W

Surgeprotection

± 4KV

Network Protocols

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55032 Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

MTBF

300,000hours

Dimensions (W x D x H)

143.7 x 104x 47.7mm

Weight

Product Weight: 0.7KG
Packing Weight: 0.8KG

Working Environment

Working temperature: -40～80℃;
Storage temperature: -40～80℃
Relative Humidity: 5%~95 %( no condensation)
