1000Base-FX Port

16 port SFP

1000Base-TX Port

8 port RJ-45 auto-MDI / MDI-X
     4G combo (either 4G SFP or 4G RJ45)

Performance Specification

Bandwidth (switch capacity): 256G
     Packet Buffer Memory: 16Mbit
     Packet Forwarding Rate: 131Mpps
     MAC Address Table: 16K

Installation

Bracket mounting

Maximum Frame Size

10240bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP50 Aluminum housing

LED Indicator

Power: Red
     Fiber: Link 2(Green)
     Ethernet: Yellow

Dual Power Input

36 to 72V DC; AC110-240V

Power Consumption

< 45W

Surge protection

 ± 4KV

Network Protocols

IEEE802.3 10BASE-T;
     IEEE802.3i 10Base-T;
     IEEE802.3u;100Base-TX/FX;
     IEEE802.3ab 1000Base-T;
     IEEE802.3z 1000Base-X;
     IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
     100BASE-TX: Cat5 or later UTP(≤100 meter)
     1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55032 Class A
     IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
     IEC61000-4-3 (RS): 10V/m (80~1000MHz)
     IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
     IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
     IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
     IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

MTBF

300,000hours

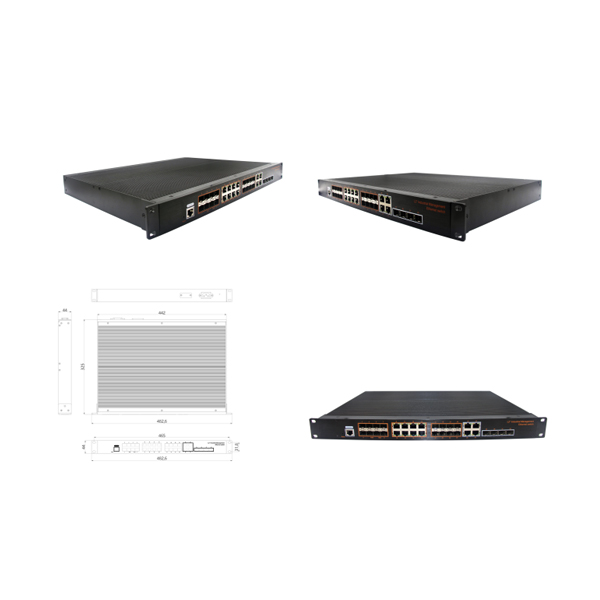

Dimensions (W x D x H)

442×325×44 mm

Weight

Product Weight: 3.26KG
     Packing Weight: 4KG

Working Environment

Working temperature: -40～80℃ ;
     Storage temperature: -40～80℃
     Relative Humidity: 5%~95 %( no condensation)

Interface counters

Storm Control

Link Aggregation

Static Aggregation

Dynamic Aggregation, LACP

Supports up to 8 aggregation groups, each group up to 8 ports
     Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy

MAC Table Management

Support

Forwarding mode

Support IVL forwarding mode

Static MAC Address

Support

MAC Address Binding

Support

MAC Address Filtering

Support

Mirror

Port-based Mirror

Spanning Tree

IEEE802.1d STP

IEEE802.1w RSTP

IEEE802.1s MSTP

ERPS (G.8032)

Single Ring, Sub-Ring, Multi-Ring

Load balance

Recovery Time < 50ms

GVRP

Supported

QINQ

VLAN-based QinQ

LLDP

LLDP

LLDP-MED

Loop Protection

Supported

VLAN

4094 VLAN

Port-based VLAN

GVRP

Protocol VLAN

MAC-based VLAN

IP Subnet-based VLAN

Voice VLAN

Static entry

LLDP-MED

Port Isolate

Support

IGMP

Snooping IGMP V1 Snooping

IGMP V2 Snooping

IGMP V3 Snooping

Source Port Check

IGMP Fast Leave

IGMP Filter

MLD Snooping

MLD V1 Snooping

MLD V2 Snooping

Source Port Check

MLD Fast Leave

MLD Filter

Security

ACL

ACL (IP Standard ACL), IPv4/IPv6

MAC extend ACL

IP extend ACL

L2, L3, L4 fields match

log, redirection, mirroring, speed limit

QoS

QoS Class, Remarking

SP, WRR queue scheduling

Ingress port-based rate-limit

Ingress priority-based rate-limit

Egress port-based rate-limit

Egress queue-based rate-limit

Policy-based QoS

Storm Control

8 queues per port

Dot1x

Port Access Control

User Access Control

MAC-address Access Control

AAA

Support 802.1x

Support RADIUS

Supports authentication, authorization, and accounting through RADIUS server

Management

User management

Password protection

SNMP

SNMP V1/V2c/V3

RMON

Statistics Group

History Group

Alarm Group

Events Group

Web management

HTTP V1.1, HTTPS

Firmware Upgrade

Reversion Upgrade

IPv4/IPv6

Support

CLI

Support

Syslog/Debug

Support

Diagnosis

Ping (IPv4), ping (IPv6)

Trace route(IPv4)

Trace route(IPv6)

Management

NTP

NTP Client

DHCP

DHCPv4 Client, DHCPv6 Client

DHCP Snooping

DHCP snooping table

Trust Port

IPv6 DHCP-Guard

Support

Telnet

Telnet Server

TFTP

TFTP Client

SSH

SSH Server
