Single-port indoor and outdoor 1-port surge protector for 100Mbps, 1000Mbps, 10000MbpsPOE SPD WPX-PTSA-R4-48

Single-port indoor and outdoor 1-port surge protector for 100Mbps, 1000Mbps, 10000MbpsPOE SPD WPX-PTSA-R4-48

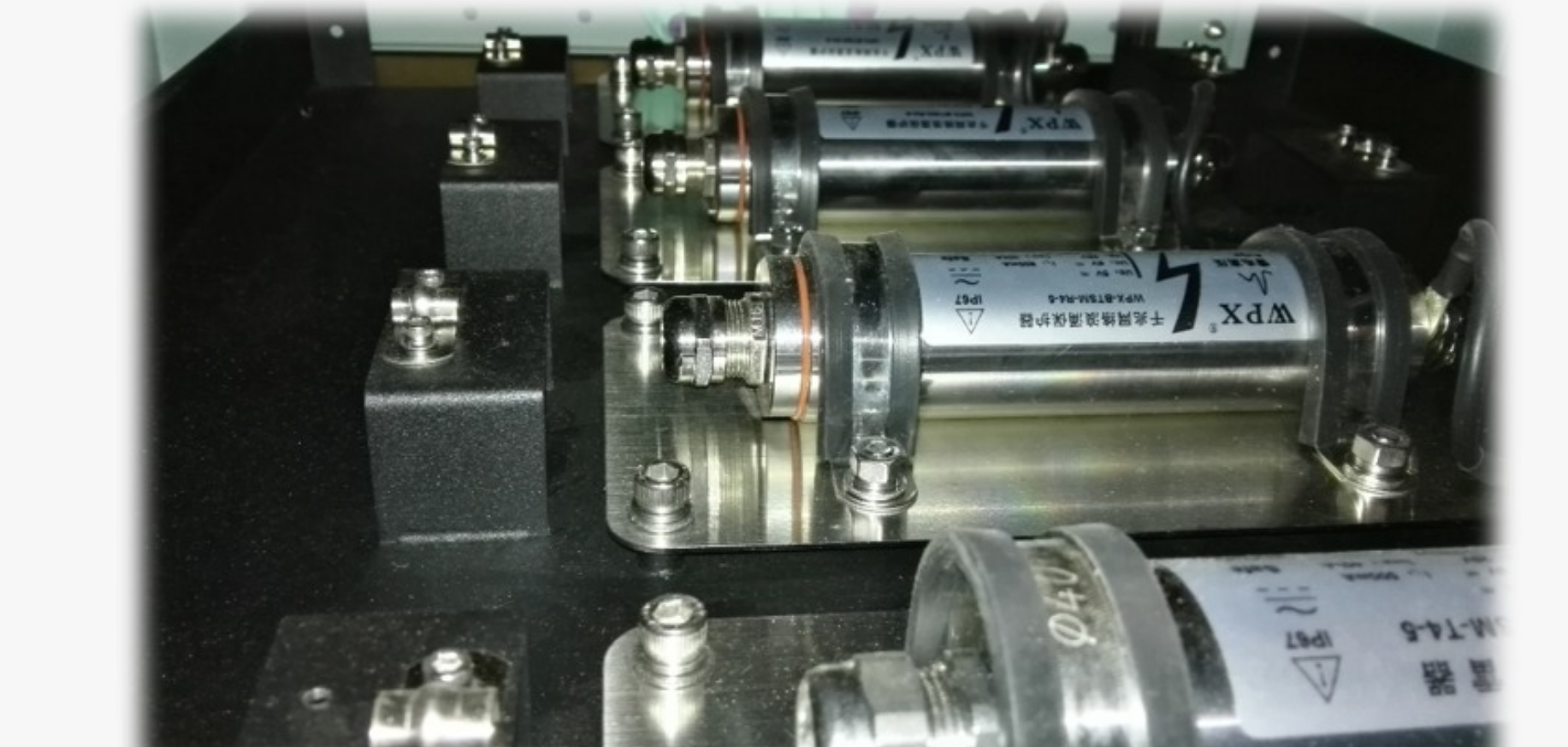

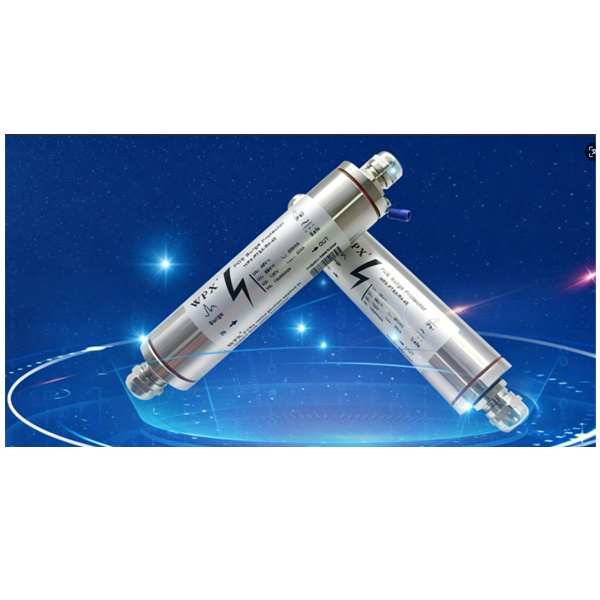

Indoor and outdoor 304 stainless steel 1-port surge protector 100/10000M active Ethernet lightning arrester, used to protect the internal interface circuits of high-speed Ethernet. Connected in series at the input end of the protected equipment. When the transmission line is subjected to lightning induction, the lightning current flows through the lightning branch of the protector to the ground and clamps the lightning overvoltage within the allowable voltage range of the equipment, thus ensuring the safety of the equipment. The waterproof rating reaches IP67. (The WPX-PTSA-R4-48 housing and internal materials are corrosion-resistant, heat-resistant, salt fog-resistant, and have a long lifespan)

Contact E-mail:service@hnwpx.com  WhatsApp:+8613507311110

When both parties collaborate, customers can request customized research and development, production, and product processing - supporting OEM cooperation.

The pre-sale, in-sale and after-sale services of the products usually cover the following core contents:

Pre-sales Service: Product consultation, demand analysis, solution design, technical demonstration, quotation and sample trial support, aiming to guide decisions, build trust and facilitate purchases. Sample delivery - 3 days. Batch delivery is based on customer requirements, taking 15 to 20 days.Pre-sales service‌: Order processing, contract signing, payment coordination, logistics tracking, delivery arrangement, basic usage training, to ensure smooth transactions, transparent information, and timely delivery.

‌After-sales service‌: Installation guidance, technical support, repair and return (including "three guarantees"),customer follow-up, complaint handling, warranty services and upgrade suggestions, to guarantee the usage experience and enhance cooperation loyalty。


Specifications



Model NumberWPX-PTSA-R4-48
Art No.692 401
SPD categoryType2
Rated Working Voltage( Uo)48V
DC Max Continuous Operating Voltage( Uc)58V
AC Max Continuous Operating Voltage( Uc)35V
Max working current (IL)0.8A
POE power supply1,2-3,6 or 4,5-7,8 ;Total 75W
C2 Total nominal discharge current (8/20μs)(Itotal)10kA
C2 nominal discharge current (8/20μs)per wire(In)2.5kA
Total nominal discharge current C2-PE(Itotal)20kA
Nominal discharge current per wire C2-PE(In)2.5kA
Voltage protection level wire-wire C2(Up)≤120V
Voltage protection level wire-PE C2(Up)≤150V
 Voltage protection level wire-wire 1kV/usC3(Up)≤90V
Voltage protection level wire-PE 1kV/usC3(Up)≤90V
 Response Time(tA)≤1ns
transmission rate1000Mbps
Insertion Loss(100MHz)≤1.0dB
Impedance in series≤0.5Ω
Protected pin1/2;3/6;4/5;7/8
Relative Humidity≤95%(25℃)
Working temperature range(TU)-40℃---+80℃
Atmospheric Pressure86kPa...106kPa
Wiring methodsRJ45(shield)
Port numbersin-1×RJ45;out-1×RJ45
Housing materialStainless steel
Installation placeIndoor or Outdoor
Degree of protection(IP code)IP67

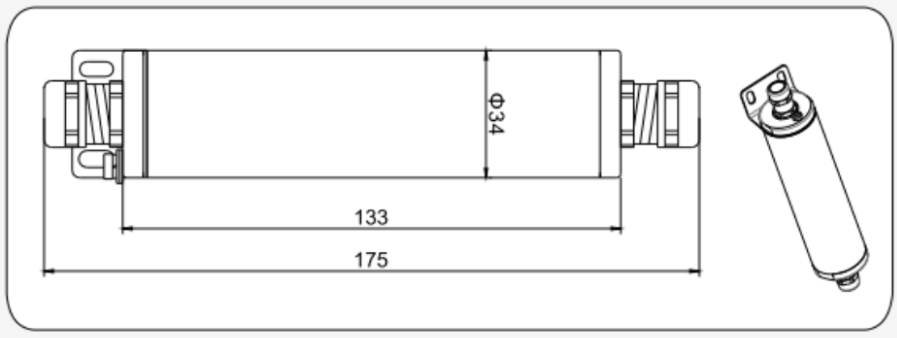

Diagram of dimensions

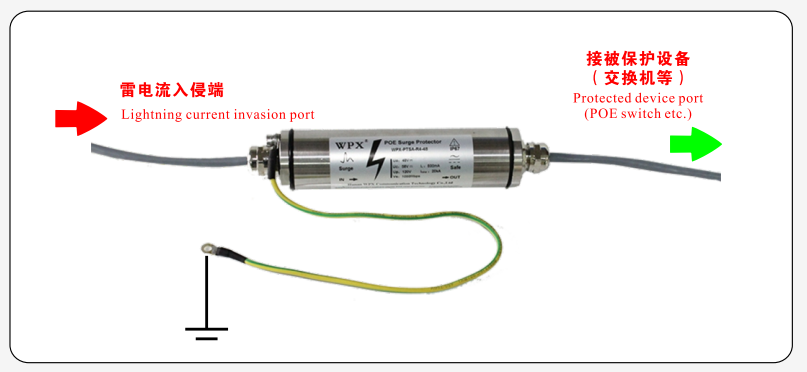

POE surge protector PTSA - R4-48 signal surge protective device is mainly for protecting high-speed Ethernet Internal interface circuit with POE. Connection in series the input of protected equipment,when the transmission line suffered lightning induction,surge protective device will discharge lightning current to the earth, clamp the lightning overvoltage so that keep the voltage within an allowable range and ensure the safety of the equipment。






Description






POE surge protector PTSA - R4-48 signal surge protective device is mainly for protecting high-speed Ethernet Internal interface circuit with POE. Connection in series the input of protected equipment,when the transmission line suffered lightning induction,surge protective device will discharge lightning current to the earth, clamp the lightning overvoltage so that keep the voltage within an allowable range and ensure the safety of the equipment.
